Setting Up Wireless Network Security

You can set up security for your projector to use on a wireless network. Set up one of the following security options to match the settings used on your network:
Note: Contact your network administrator for guidance on entering the correct information.
  1. If you want to set up WPA2-EAP or WAP/WAP2-EAP security, make sure your digital certificate file is compatible with projector registration and placed directly on the USB storage device.
  2. Press the Menu button.
  3. Select the Network menu and press Enter.


  4. Select Network Configuration and press Enter.
  5. Select the Wireless LAN menu and press Enter.
  6. Set the Security setting to match your network settings.
  7. Do one of the following depending on the network security setting you selected:
    • WPA2-PSK or WPA/WPA2-PSK: Select Complete and follow the on-screen instructions to save your settings and exit the menus. Skip the remaining steps.

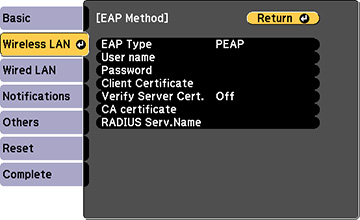

    • WPA2-EAP or WPA/WPA2-EAP: Select EAP Method and press Enter.


  8. Select your authentication protocol as the EAP Type setting.
  9. To import your certification, select the certificate type (either Client Certificate or CA certificate) and press Enter.
    Note: You can also register a digital certificate from your web browser. Make sure to register just once or the certificate may not install correctly.
  10. Select Register and press Enter.
  11. Follow the on-screen instructions to connect a USB storage device to the projector's USB-A port.
  12. Press Enter to display the certificate list.
  13. Select the certificate to import from the displayed list. You see a message to enter the certificate password.
  14. Enter a password and press Enter. You see a completion message after the certificate is imported.
  15. Set the following EAP settings as necessary:
    • User name lets you enter a user name up to 64 alphanumeric characters long. To enter more than 32 characters, use your web browser.
    • Password lets you enter a password up to 64 alphanumeric characters long when using the PEAP, EAP-FAST, or LEAP protocols. To enter more than 32 characters, use your web browser.
    • Verify Server Cert. lets you select whether or not to verify the server certificate when a CA certificate has been set.
    • RADIUS Serv.Name lets you enter the server name to be verified.
  16. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.
