print documents and photos on a variety of paper types and

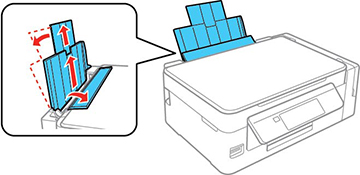

Flip the feeder guard forward, then raise the paper
support and its extension.

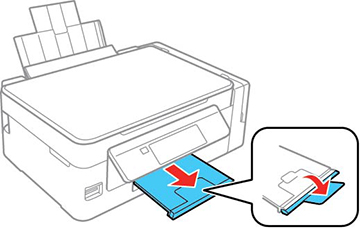

Pull out the output tray and open the paper stopper on the
Note: If you
print on legal-size or longer paper, leave the paper stopper

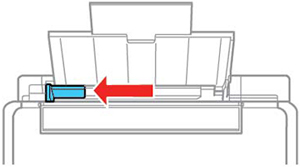

Slide the edge guide to the left.

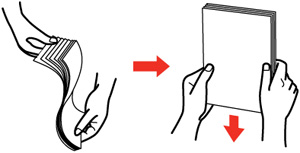

If you are inserting a stack of paper, fan the sheets
first and tap the stack on a flat surface to even the edges.
Note: Do not
fan or curl photo paper.

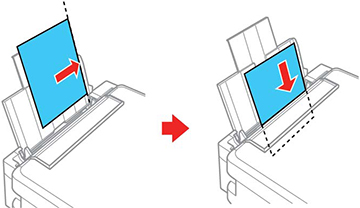

Do one of the following:
glossy or printable side up and short edge first, against the right
side and beneath the line on the left edge guide.
Load up to 10
envelopes against the right side. Load them printable side up and
flap edge left.

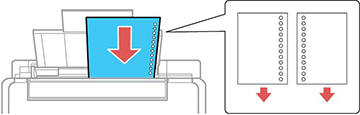

Load a sheet
of loose-leaf or other paper with holes facing as shown.

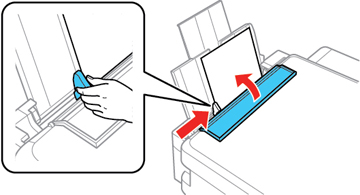

Slide the edge guide against the paper, but not too
tightly. Then flip the feeder guard back.
If prompted by the product's LCD screen, select the size
and type of the paper you loaded and press the OK
these paper loading guidelines:
Load only the
recommended number of sheets.
Load paper short
edge first, no matter which way your document faces.
or pre-printed paper top edge first.
Do not load paper
above the arrow mark inside the edge guide.
If you have
trouble loading a stack of envelopes, press each envelope flat
before loading it or load one envelope at a time.
Do not load
envelopes that are curled, folded, or too thin, or that have
Check the paper
package for any additional loading instructions.
If you use paper
with binder holes, load only one sheet at a time in only these
sizes: Letter (8.5 × 11 inches
[216 × 279 mm]), A4
(8.3 × 11.7 inches [210 × 297 mm]),
or Legal (8.5 × 14 inches
[216 × 356 mm]).
