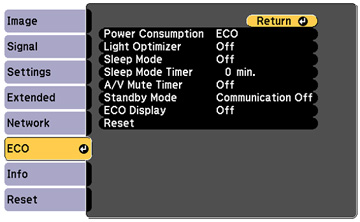

Projector Setup Settings - ECO Menu

Settings on the ECO menu let you customize projector functions to save power. When you select a power-saving setting, a leaf icon appears next to the menu item.



Setting Options Description
Power Consumption Auto

Normal

ECO

Selects the brightness mode of the projector lamp

Auto: allows the projector to sense the optimum lamp brightness and adjust the lamp brightness accordingly

Normal: sets maximum lamp brightness

ECO: reduces lamp brightness and fan noise, and saves power and lamp life

Light Optimizer On

Off

When Power Consumption is set to Normal and both Auto Iris and Multi Projection are turned off, the lamp brightness is adjusted based on the projected image; you can set this option for each color mode
Sleep Mode On

Off

Automatically places the projector in standby mode after an interval of inactivity
Sleep Mode Timer 1 to 30 minutes Sets the interval for Sleep Mode
A/V Mute Timer On

Off

Automatically turns off the projector after 30 minutes if A/V Mute is enabled
Standby Mode Communication On

Communication Off

Enable this setting to allow the following operations to occur when the projector is in standby mode:
  • Monitor and control the projector over a network
  • Output audio and video to an external device (A/V Output must be set to Always On)
ECO Display On

Off

Displays a leaf icon in the bottom left corner of the projected screen to indicate the power-saving status when the lamp brightness changes
