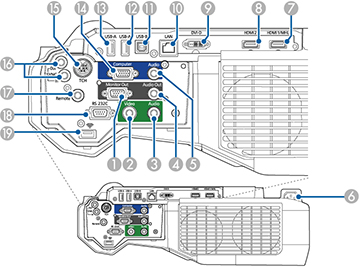

| 1 | Monitor Out port |
| 2 | Video port |
| 3 | Audio port for use with the Video port |
| 4 | Audio Out port |
| 5 | Audio port for use with the Computer port |
| 6 | Power inlet |
| 7 | HDMI 1/MHL port |
| 8 | HDMI 2 port |
| 9 | DVI-D Out port |
| 10 | Network (LAN) port |
| 11 | USB-B port for computer connection |
| 12 | USB-A port for USB memory device or document camera |
| 13 | USB-A port for USB memory device or document camera |
| 14 | Computer port |
| 15 | TCH port for the Touch Unit connection cable |
| 16 | SYNC In/Out ports |
| 17 | Remote port for the Control Pad connection cable |
| 18 | RS-232C port |
| 19 | Wireless LAN module port |
