Connecting a Printer to the Control Pad

You can connect an Epson printer or all-in-one device to the Printer port on the control pad and use it to print your projected and annotated content from the whiteboard.
Note: Make sure the printer meets the control command requirements.

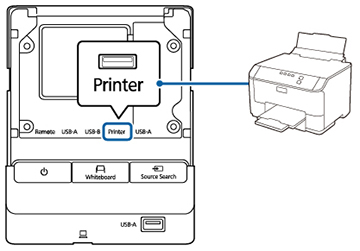

  1. Connect a USB cable to the USB-A port on the projector and to the USB-B port on the control pad.


  2. Connect another USB cable to the Printer port on the control pad. Make sure the cable is no longer than 16.4 ft (5 m).
  3. Connect the other end of the cable to the USB type B port on the printer.


    Note: You can connect a wireless printer by selecting Network as the Whiteboard Settings > Print > Default Printer setting in the Extended menu.
