Controlling a Networked Projector Using a Web Browser

Once you have connected your projector to your network, you can select projector settings and control projection using a compatible web browser. This lets you access the projector remotely.
Note: The web setup and control features support Microsoft Internet Explorer 9.0 or later, and Safari on networks that do not use a proxy server for connection. You cannot select all of the projector menu settings or control all projector functions using a web browser.
Note: If you set Standby Mode to Communication On in the ECO menu, you can use a web browser to select settings and control projection even if the projector is in standby mode.
  1. Make sure the projector is turned on.
  2. Start your web browser on a computer or device connected to the network.
  3. Type the projector's IP address into the browser's address box and press the computer's Enter key.
    Note: If you attempt to connect to the Web Control screen via a proxy server, the screen will not be displayed. Make a direct connection to the Web Control screen.
  4. Select the icon.
    Note: You may need to log in before you see the Web Control screen. If you see a log in window, enter your user name and password. (The default user name is EPSONWEB and the default password is admin.)
    You see the Web Control screen.
  5. To select projector menu settings, select the name of the menu and follow the on-screen instructions.

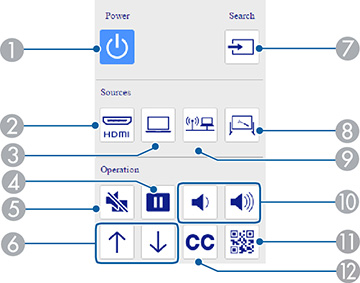

  6. To control projection remotely, select the Web Remote option from the Projector Control menu. You see a screen like this:

    1 Power button control
    2 Selects HDMI port sources
    3 Selects the Computer port source
    4 Freeze button control
    5 A/V Mute button control
    6 Page up and Page down button controls
    7 Searches for sources
    8 Selects the Whiteboard source
    9 Selects the network source
    10 Volume button controls
    11 Displays a QR code for connecting with iOS or Android devices using the Epson iProjection app
    12 Displays closed captions
  7. Select the icon corresponding to the projector function you want to control.
