Certain parts are labeled with a letter and number code. If you encounter any paper jams or errors, you can use these codes to locate and correct the problem.

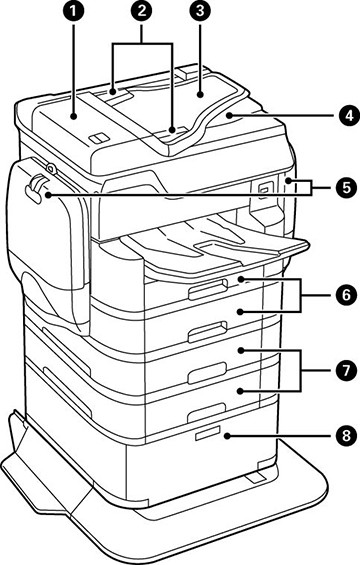

| 1 | Automatic Document Feeder (ADF) cover (F) |
| 2 | ADF edge guides |
| 3 | ADF input tray (F) |
| 4 | ADF output tray |
| 5 | Ink cases (P1, P2) |
| 6 | Paper cassettes 1 and 2 (C1 and C2) |
| 7 | Optional cassettes 3 and 4 (C3 and C4) |
| 8 | Optional cabinet |

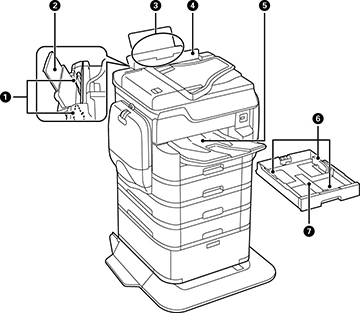

| 1 | Rear paper feed edge guides |
| 2 | Paper support and extension |
| 3 | Rear paper feed slot (B1) |
| 4 | Feeder guard |
| 5 | Output tray |
| 6 | Paper cassette edge guides |
| 7 | Paper cassette |
