If
you cannot install the projector directly in front of the screen,
you can adjust the position of the projected image using the lens
shift feature.
Follow these guidelines when using lens shift to
adjust your images:
- When adjusting the image height, position the image lower than where you want it to be and then move it up using the vertical lens shift dial. This helps prevent the image from moving down after adjustment.
- Keep the vertical and horizontal lens shift dials in their center positions for the clearest picture.
Note: Wait 30
minutes after turning on the projector before setting the focus,
zoom, and lens shift for maximum accuracy.
- Turn on the projector and display an image.
- Slide the lens shift dial lock as shown to release the lock.
-
Turn the vertical and horizontal lens shift
dials on the projector to adjust the position of the projected
image as necessary.
PowerLite 5510

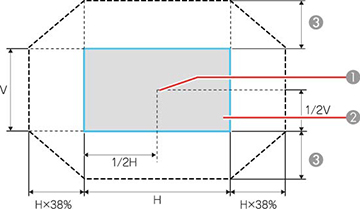

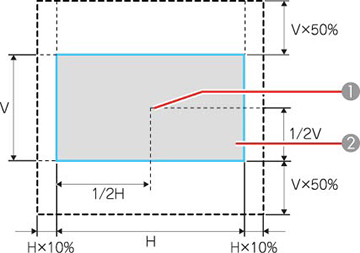

1 Center of lens 2 Projected image when the lens is set to the home position 3 Maximum range: V × 58% Note: You cannot move the image upward when the lens is shifted horizontally all the way.PowerLite 5520W/5530U/5535U
1 Center of lens 2 Projected image when the lens is set to the home position - When you are finished, slide the lens shift dial lock as shown to lock the dials.
