Adjusting the Image Position Using Screen Position

You can adjust the image position if there are margins between the edge of the image and the projected screen frame.
Note: You cannot adjust the screen position if the Screen Type setting is set to 16:10 for a WXGA/WUXGA projector model or 4:3 for a XGA projector model.
  1. Turn on the projector and display an image.
  2. Press the Menu button.
  3. Select the Extended menu and press Enter.
  4. Select Display > Screen > Screen Position.

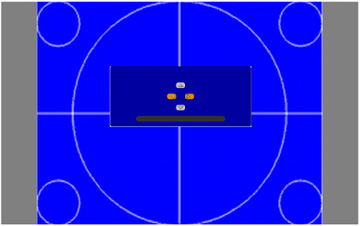

  5. Use the arrow buttons on the remote control or projector to adjust the position of the image.


  6. When you are finished, press the Menu button.
