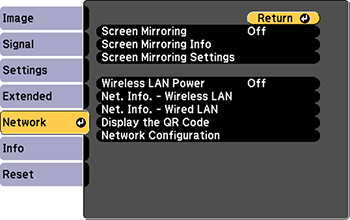

Settings on the Network menu let you view network information and set up the projector for monitoring and control over a network.
| Setting | Options | Description |
|---|---|---|
| Screen Mirroring
(PowerLite 5520W/5530U/5535U) |
On
Off |
Turns on screen mirroring mode |
| Screen Mirroring Info
(PowerLite 5520W/5530U/5535U) |
Display Name
MAC Address Region Code Channel Connected Device |
Displays screen mirroring status and details |
| Screen Mirroring
Settings
(PowerLite 5520W/5530U/5535U) |
Various screen mirroring options
|
Configures your screen mirroring settings; only available when Screen Mirroring is On |
| Wireless LAN Power | On
Off |
Turns on wireless LAN mode |
| Net. Info - Wireless LAN | Connection mode
Wireless LAN System Antenna level Projector Name SSID DHCP IP Address Subnet Mask Gateway Address MAC Address Region Code IPv6 Address |
Displays wireless network status and details |
| Net. Info - Wired LAN | Projector Name
DHCP IP Address Subnet Mask Gateway Address MAC Address IPv6 Address |
Displays wired network status and details |
| Display the QR Code | — | Displays a QR code for connecting with iOS or Android devices using the Epson iProjection app |
| Network Configuration | Accesses additional network menus | Configures your network settings |
