Make sure
you have your replacement cartridges handy before you begin. You
must install new cartridges immediately after removing the old
ones.
Note: Replace all
expended ink cartridges. You cannot print if any of the ink
cartridges are expended or any ink slots are empty.
- Press the ink cartridge cover to open it.
- Press in on the ink cartridge you want to replace. The ink cartridge pops out slightly.
- Pull out the ink cartridge.
Note: Dispose of used cartridges carefully. Do not take the used cartridge apart or try to refill it.Warning: If ink gets on your skin, wash it thoroughly with soap and water. If ink gets into your eyes, flush them immediately with water. If ink gets into your mouth, spit it out and see a doctor right away. Keep ink cartridges out of the reach of children.

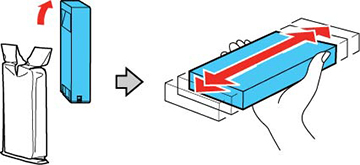

- Remove the new cartridge from the
package. Then gently shake the cartridge for about 15
seconds.
Caution:Do not touch the green chip on the cartridge.
- Insert the new cartridge with the
arrow facing up and push it in until it clicks into place.
Caution:Do not remove and re-insert cartridges more often than necessary. Doing so can break the needle valve seal and allow air to enter the ink tubes, damaging the nozzles.
- Close the ink cartridge cover and push it in until it clicks into place.
Your product
begins charging the ink delivery system.
Note: Do not turn
off the product during ink charging.
Caution:
If you remove an ink cartridge for later use,
protect the ink supply area from dirt and dust and store it in the
same environment as the printer. The valve in the ink supply port
is designed to contain any excess ink, but do not touch the ink
supply port or surrounding area. Always store ink cartridges with
the label facing up; do not store cartridges upside-down.
Note: If a
cleaning cycle starts when ink is low and the level of ink
remaining in the cartridge is estimated to be less than required
for a cleaning, the printer will tell you that there is not enough
ink to complete the process. You must insert a fuller cartridge to
complete the cleaning. At the end of the cleaning, the original
cartridge can be re-inserted and used until it is
expended.
