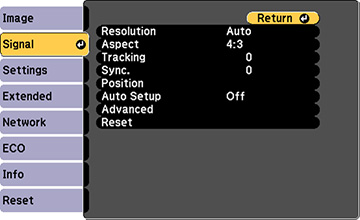

Input Signal Settings - Signal Menu

Normally the projector detects and optimizes the input signal settings automatically. If you need to customize the settings, you can use the Signal menu. The available settings depend on the currently selected input source.

Note: You can restore the default settings of the Position, Tracking, and Sync settings by pressing the Auto button on the remote control.

To change settings for an input source, make sure the source is connected and select that source.

Setting Options Description
Resolution Auto



Sets the input signal resolution if not detected automatically using the Auto option
Aspect See the list of available aspect ratios Sets the aspect ratio (width-to-height ratio) for the selected input source
Tracking Varying levels available Adjusts signal to eliminate vertical stripes in computer images
Sync. Varying levels available Adjusts signal to eliminate fuzziness or flickering in computer images
Position Up, down, left, right Adjusts the image location on the screen
Auto Setup On


Automatically optimizes computer image quality (when On)
Overscan Auto




Changes the projected image ratio to make the edges visible by a selectable percentage or automatically when using an HDMI input source
Advanced See the Advanced settings table in this topic

Advanced settings

Setting Options Description
HDMI Video Range Auto



Sets the video range to match the setting of the device connected to the HDMI input port

Auto: detects the video range automatically

Normal: for images from a device other than a computer; select if the black areas of the image are too bright

Expanded: for images from a computer; select if the image is too dark

Input Signal Auto



Specifies the signal type from input sources connected to computer ports

Auto: detects signals automatically

RGB: corrects color for computer/RGB video inputs

Component: corrects color for component video inputs

Video Signal Auto

Various video standards

Specifies the signal type from the input sources connected to the video ports

Auto: detects signals automatically
