Controlling a Networked Projector Using a Web Browser

Once you have connected your projector to your network, you can select projector settings and control projection using a compatible web browser. This lets you access the projector remotely.
Note: The web setup and control features support Microsoft Internet Explorer 9.0 or later, and Safari on networks that do not use a proxy server for connection. You cannot select all of the projector menu settings or control all projector functions using a web browser.
Note: If you set Standby Mode to Communication On in the ECO menu, you can use a web browser to select settings and control projection even if the projector is in standby mode.
  1. Make sure the projector is turned on.
  2. Start your web browser on a computer or device connected to the network.

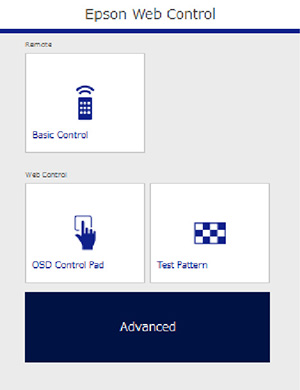

  3. Type the projector's IP address into the browser's address box and press the computer's Enter key. You see the Web Control screen.

  4. To select projector menu settings, select Advanced to bring up a list of options.
    Note: You may need to log in to access some of the options on the Web Control screen. If you see a log in window, enter your user name and password. (The default user name is EPSONWEB and the default password is admin.)
  5. To control projection remotely, select the Basic Control option from the Web Control screen.
    Note: If you see a log in window, enter your user name and password. (The default user name is EPSONREMOTE and the default password is guest.)

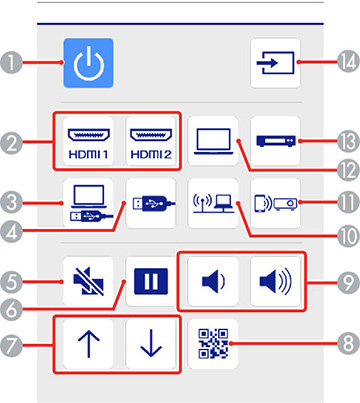

    You see a screen like this:

    1 Power button control
    2 Select an HDMI port source
    3 Selects the USB Display source
    4 Selects the USB device source
    5 A/V Mute button control
    6 Freeze button control
    7 Page Up and Page Down button controls
    8 Displays a QR code
    9 Volume button controls
    10 Selects the network source
    11 Selects the Screen Mirroring source (PowerLite 1286)
    12 Selects the Computer port source
    13 Selects a Video port source
    14 Searches for connected sources
  6. Select the icon corresponding to the projector function you want to control.
