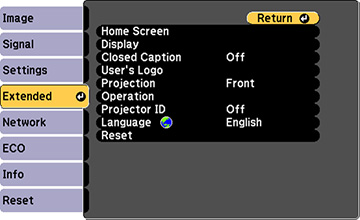

Settings on the Extended menu let you customize various projector setup features that control its operation.
| Setting | Options | Description |
|---|---|---|
| Home Screen | Home Screen Auto
Disp.
Custom Function 1 Custom Function 2 |
Select various options for the projector's Home screen
Home Screen Auto Disp.: controls whether the Home Screen displays automatically when the projector is turned on Custom Function 1/Custom Function 2: lets you customize the options displayed on the Home Screen and save your settings as a preset |
| Display | Messages
Display Background Startup Screen A/V Mute |
Selects various display options
Messages: controls whether messages are displayed on the screen Display Background: selects the screen color or logo to display when no signal is received Startup Screen: controls whether a special screen appears when the projector starts up A/V Mute: selects the screen color or logo to display when A/V Mute is turned on |
| Closed Caption | Off
CC1 CC2 |
Controls use of closed captions and selects the closed caption type (closed captions are visible only for NTSC signals connected through the Video port) |
| User's Logo | — | Creates a screen that the projector displays to identify itself and enhance security |
| Projection | Front
Front/Ceiling Rear Rear/Ceiling |
Selects the way the projector faces the screen so the image is oriented correctly |
| Operation | Direct Power On
High Altitude Mode Auto Source Search Auto Power On HDMI EQ Setting |
Selects various operation options
Direct Power On: turns on the projector when you plug it in High Altitude Mode: regulates the projector’s operating temperature at altitudes above 4921 feet (1500 m) Auto Source Search: automatically detects the image signal being input when the projector is turned on Auto Power On: automatically turns on the projector when it receives an image signal (available only when Standby Mode is set to Communication On) HDMI EQ Setting: adjusts the HDMI input signal level depending on the connected device |
| Projector ID | Off
1 through 9 |
Sets the projector to a particular ID number which allows you to use a remote control to individually control projectors |
| Language | Various languages available | Selects the language for projector menu and message displays (not changed by Reset option) |
