Connecting to a Composite Video Source

If your video source has a composite video port, you can connect it to the projector using an optional RCA-style video or A/V cable.
  1. Connect the cable with the yellow connector to your video source's yellow video output port.
  2. Connect the other end to the projector's Video port.

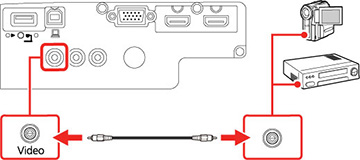

    Home Cinema 660/760HD

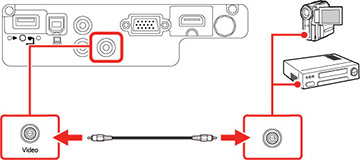

    Home Cinema 1060



Note: If you connected a game console, it may take a few seconds for your image to appear when you switch to the game console's input source. To reduce the potential lag in response time to game commands, set your game console's output format to a progressive signal of 480p, 720p, or higher. See your game console documentation for instructions.
