You can place originals up to this size on the
scanner glass: A3 (11.7 × 16.5 inches
[297 × 420 mm]).
Note: When
originals are placed in the ADF and on the scanner glass, priority
is given to the originals in the ADF.
- Open the document cover.

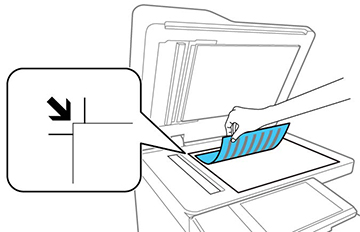

- Place your original facedown on the scanner glass with the
top facing into the corner. Slide the original to the edges of the
indicated corner.
Note: You can place multiple originals on the scanner glass. Just make sure they are at least 0.8 inch (20 mm) away from each other.Note: The edges of your original may be cropped by 0.06 inch (1.5 mm) from the edge of the scanner glass.
- Close the document cover gently to keep your original in
place.
Caution:Do not push down on the document cover or scanner glass or you may damage the product.
