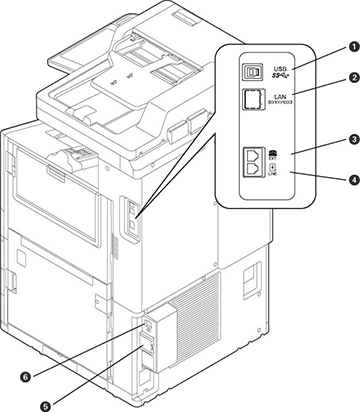

Product Parts - Back



1 USB port
2 LAN port
3 EXT. port (WF-C17590/WF-C20590/WF-M20590F)
4 Line port (WF-C17590/WF-C20590/WF-M20590F)
5 Circuit breaker cover (may not appear on all products)
6 AC inlet

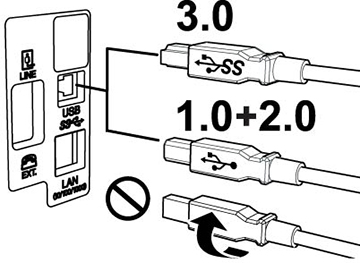

Note: If you are using a USB connection, you must insert the cable in the correct orientation.


Parent topic: Product Parts Locations
