Connecting to a Composite Video Source

If your video source has a composite video port, you can connect it to the projector using an optional RCA-style video or A/V cable.
  1. Connect the cable with the yellow connector to your video source's yellow video output port.
  2. Connect the other end to the projector's Video port.

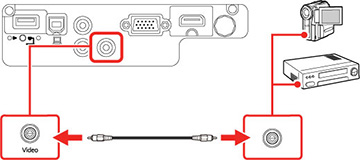

    EX3260/EX5260/Pro EX7260/VS250/VS350/VS355

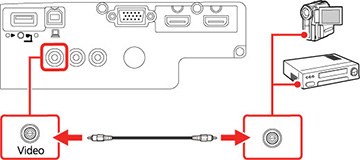

    Pro EX9210/Pro EX9220
