Installing the Wireless LAN Module

To use the projector over a wireless network, install the Epson 802.11b/g/n wireless LAN module in the projector (PowerLite S41+/X41+/X05+/W05+). Do not install any other type of wireless module.
Note: The wireless LAN module is not included with the PowerLite S41+/X05+ and is optional.
Note: You do not need the wireless LAN module for the PowerLite W42+/U42+ since the wireless functionality is built-in.
  1. Remove the wireless LAN module cover screw.

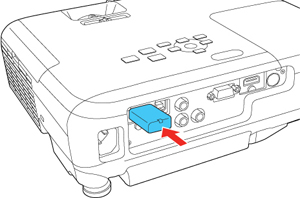

  2. Insert the wireless LAN module into the USB-A port.


  3. Attach the wireless LAN module cover and secure it using the screw you removed.


The light on the wireless LAN module turns on when the module is installed and operating. The light flashes when the module is communicating over the network.
Parent topic: Wireless Network Projection
