Placing Originals in the Automatic Document Feeder

You can place single- or multi-page original documents in the Automatic Document Feeder (ADF). You can also use the ADF to scan both sides of a 2-sided document. Make sure the originals meet the Automatic Document Feeder specifications before loading them.
Caution:
Make sure your originals are not creased or folded, and do not contain holes, staples, tape, or other materials that could obstruct the feeder.

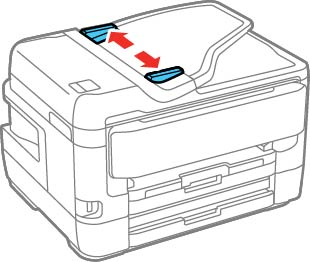

  1. Slide the ADF edge guides outward.

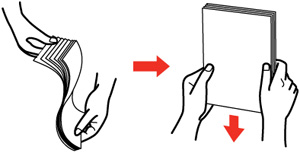

  2. Fan your stack of originals and tap them gently on a flat surface to even the edges.


  3. Insert the originals into the ADF faceup and top-edge first.

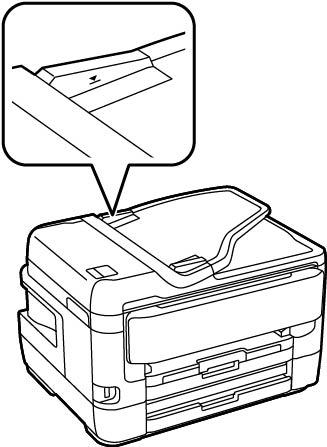

    Note: Do not load originals above the arrow mark on the ADF edge guide.


    The ADF icon on the Copy, Scan, and Fax screens lights up.

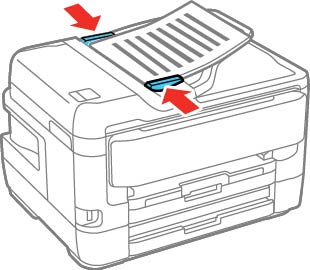

  4. Slide the ADF edge guides against the originals, but not too tightly.

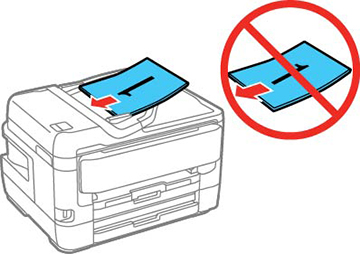

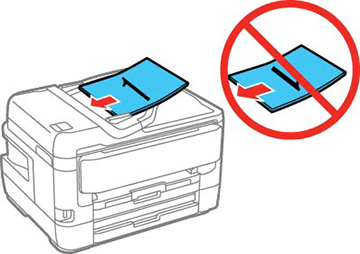

    Note: If you are copying two originals onto one sheet, make sure the originals are loaded as shown:
