Connecting to an HDMI Video Source

If your video source has an HDMI port, you can connect it to the projector using an optional HDMI cable. The HDMI connection provides the best image quality.
  1. Connect the HDMI cable to your video source's HDMI output port.
  2. Connect the other end to the projector's HDMI port.

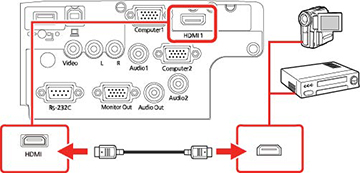

    PowerLite S39

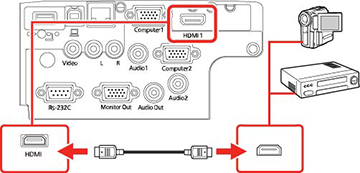

    PowerLite X39

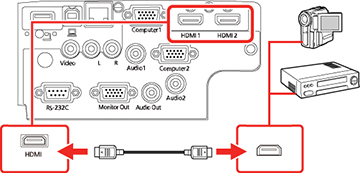

    PowerLite W39



Note: The projector converts the digital audio signal sent from your video source into a mono analog signal for the internal speaker or a stereo analog signal if you are connecting to external speakers.
Note: If you have problems hearing audio through the HDMI connection, you can use the Audio port instead to play sound. Connect one end of an optional 3.5 mm stereo mini-jack audio cable to the projector's Audio port and the other end to your computer's audio out port. Then select Audio as the HDMI Audio Output setting in the Extended menu.
