Drawing on a Projected Image (Built-in Annotation Mode)

You can project from a computer, tablet, video device, or other source and annotate over your projected content using the interactive pens or your finger. You can use one pen, both pens at the same time, or a combination of pens and finger touch.

Project an image from a connected device.

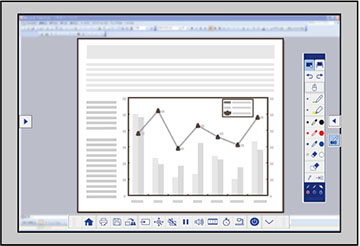

Hover near or tap the board or projected image with the interactive pen or your finger. Tap the built-in annotation mode icon on the toolbar. You see the main toolbar on the side and the projector control toolbar on the bottom of the projected image.
To move the main toolbar to the other side of the screen, tap the arrow on the opposite side of the screen.
Note: You can use the pen or your finger to move the arrow icon up or down to reposition the toolbar.
To switch to one of the other interactive modes, do one of the following:
- To switch to built-in whiteboard mode, select .
- To switch to PC Interactive mode, select , then select .
  Note: You can also press the Pen Mode button on the remote control to switch between modes.
To close the main toolbar, select the icon at the bottom of the toolbar.
Note: If you want to hide the toolbar automatically after drawing, select the icon at the bottom of the toolbar.
To show or hide the projector control toolbar, select the or arrow.
Note: You can also show or hide the projector control toolbar by setting the Extended > Display > Projector Control setting to On or Off.
