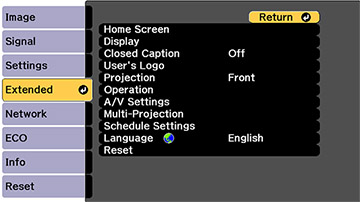

Settings on the Extended menu let you customize various projector setup features that control its operation.
| Setting | Options | Description |
|---|---|---|
| Home Screen | Home Screen Auto
Disp.
Custom Function 1 Custom Function 2 |
Adjusts settings on the Home Screen
Home Screen Auto Disp.: controls whether the Home screen displays automatically when the projector is turned on Custom Function 1 and Custom Function 2: let you customize the options displayed on the Home screen and save your settings as a preset |
| Display | Messages
Display Background Startup Screen Color Uniformity |
Selects various display options
Messages: controls whether messages are displayed on the screen Display Background: selects the screen color or logo to display when no signal is received Startup Screen: controls whether a special screen appears when the projector starts up Color Uniformity: adjusts the color tone balance |
| Closed Caption | Off
CC1 CC2 |
Controls use of closed captions and selects the closed caption type (closed captions are only visible for NTSC signals connected through the Video port) |
| User's Logo | — | Creates a screen that the projector displays to identify itself and enhance security |
| Projection | Front
Front/Upside Down Rear Rear Upside Down |
Selects the way the projector faces the screen so the image is oriented correctly |
| Operation | Direct Power On
High Altitude Mode Auto Source Search Auto Power On Quick Startup Date & Time |
Selects various operation options
Direct Power On: lets you turn on the projector without pressing the power button High Altitude Mode: regulates the projector’s operating temperature at altitudes above 4921 feet (1500 m) Auto Source Search: automatically detects the image signal that is input when the projector is turned on Auto Power On: automatically turns on the projector when it detects an input signal from the selected port Quick Startup: the projector enters this mode when you turn it off; you can start projecting in about five seconds by pressing the power button (set A/V Output to While Projecting first) |
| A/V Settings | A/V Output
Audio Output HDMI1 Audio Output HDMI2 Audio Output HDMI3 Audio Output |
Selects the following when the projector is in standby
mode (turned off):
A/V Output: the Always On setting lets the projector output audio and video signals even while it is standby mode; only available when Standby Mode is set to Communication On Audio Output: selects the audio input port when projecting images from non-HDMI ports HDMI1 Audio Output, HDMI2 Audio Output, and HDMI3 Audio Output: select which Audio port provides audio when viewing images from HDMI ports |
| Multi-Projection | Multi-Projection
Projector ID Color Mode Color Uniformity Brightness Settings Color Matching RGBCMY Reset |
Selects the following when you use multiple projectors:
Multi-Projection: matches the display settings of multiple projectors Projector ID: assigns an ID for the projector when you use multiple projectors Color Mode: adjusts the vividness of image colors for various image types and environments Color Uniformity: adjusts the color tone balance Brightness Settings: selects the brightness mode of the projector Color Matching: corrects the difference in tint and brightness for each projected image RGBCMY: adjusts the hue, saturation, and brightness for each color Reset: resets all of the Multi-Projection settings to their default values |
| Schedule Settings | Schedule
Schedule Reset Setup Complete |
Schedules projector events to occur automatically at selected dates and times |
| Language | Various languages available | Selects the language for projector menu and message displays |
Note: You cannot reset the following settings using the Reset option in the Extended menu:
- Color Uniformity
- User's Logo
- Projection
- High Altitude Mode
- Auto Source Search
- Date & Time
- A/V Output
- Multi-Projection
- Projector ID
- Color Mode
- Color Matching
- Schedule Settings
- Language
