Adjusting the Image Position Using Lens Shift

If you cannot install the projector directly in front of the screen, you can adjust the position of the projected image using the lens shift feature.
Note: Wait 20 minutes after turning on the projector before setting the focus, zoom, and lens shift for maximum accuracy. Lens shift is not supported for the ELPLR04 lens.
  1. Turn on the projector and display an image.
  2. Press the arrow buttons to adjust the position of the projected image as necessary.

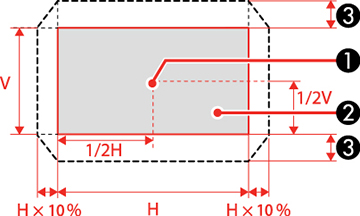

    Pro L1490U/L1490UNL/L1495U/L1495UNL/L1500UH/L1500UHNL/L1505UH/L1505UHNL/L1750UNL/L1755UNL - ELPLU03 or ELPLW05 lens



    1 Center of lens
    2 Projected image when lens shift is set to the home position
    3 Maximum range: V × 24%
    Note: You cannot move the image upward when the lens is shifted horizontally all the way.

    Pro L1490U/L1490UNL/L1495U/L1495UNL/L1500UH/L1500UHNL/L1505UH/L1505UHNL/L1750UNL/L1755UNL - ELPLU04, ELPLW06, ELPLM10, ELPLM11, ELPLM15, or ELPLL08 lens



    1 Center of lens
    2 Projected image when lens shift is set to the home position
    3 Maximum range: V × 60%
    4 Maximum range when the lens is shifted horizontally all the way: V × 31%

    Pro L1490U/L1490UNL/L1495U/L1495UNL/L1500UH/L1500UHNL/L1505UH/L1505UHNL/L1750UNL/L1755UNL - ELPLX02 lens



    1 Center of lens
    2 Projected image when lens shift is set to the home position
    3 Maximum range: V × 20% (top); V × 5% (bottom)
    Note: You cannot move the image upward when the lens is shifted horizontally all the way.

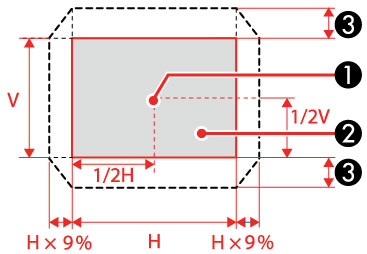

    Pro L1715SNL - ELPLU03 or ELPLW05 lens



    1 Center of lens
    2 Projected image when lens shift is set to the home position
    3 Maximum range: V × 16%
    Note: You cannot move the image upward when the lens is shifted horizontally all the way.

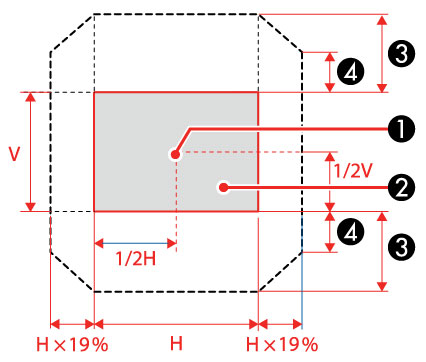

    Pro L1715SNL - ELPLU04, ELPLW06, ELPLM10, ELPLM11, ELPLM15, or ELPLL08 lens



    1 Center of lens
    2 Projected image when lens shift is set to the home position
    3 Maximum range: V × 55%; maximum range when performing screen matching or color calibration: V × 45% (ELPLU04)
      Maximum range when the lens is shifted horizontally all the way: V × 32%

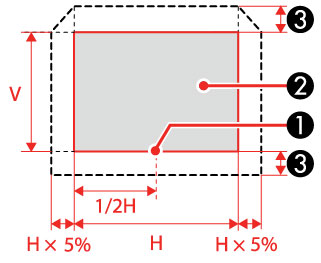

    Pro L1715SNL - ELPLX02 lens



    1 Center of lens
    2 Projected image when lens shift is set to the home position
    3 Maximum range: V × 5%
    Note: You cannot move the image upward when the lens is shifted horizontally all the way.
  3. When you are finished, press the Esc button on the control panel or remote control.
Note: When adjusting the image height, position the image lower than where you want it to be and then move it up. This will help prevent the image from moving down after adjustment. The image is clearest when the lens is at the home position. To move the lens to the home position, press and hold the Lens Shift button on the remote control or the Lens button on the control panel for at least three seconds.
