Projector Setup and Installation Options

You can set up or install your projector in the following ways:

Front

Rear

Front ceiling

Rear ceiling

Caution:

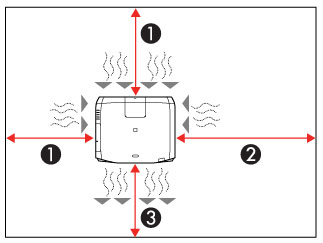

Be sure to leave the following amount of space around the projector to avoid blocking the air exhaust and intake vents.


1 19.7 inches (50 cm)
2 31.5 inches (80 cm)
3 15.7 inches (40 cm)

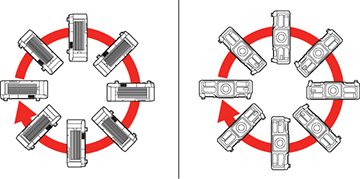

You can mount the projector to the ceiling at any horizontal or vertical angle.


If you are installing multiple projectors next to each other, be sure to leave at least 20 inches (50 cm) of space between the projectors. Also, make sure heated air from an exhaust vent does not go into the air intake vent of another projector.

If you project from the ceiling or from the rear, select the correct Projection setting and, if necessary, turn on the Inv Direction Button setting and adjust the OSD Rotation setting.
