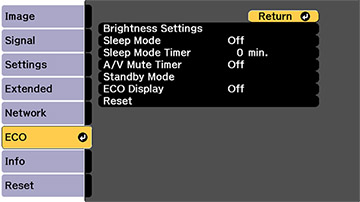

| Brightness Settings
|
Light Source Mode
Brightness Level
|
Selects the brightness mode of the projector laser
Light Source Mode:
sets the brightness for the laser; the following settings are
available:
- Normal: sets
maximum brightness level
- Quiet: reduces
laser brightness to 70% with reduced fan noise
- Extended: reduces
laser brightness to 70% and saves power and laser life
- Custom: allows you
to select a custom brightness level
Brightness Level:
allows you to select a custom brightness level |
| Sleep Mode
|
On
Off
|
Automatically places the projector in standby mode
after an interval of inactivity |
| Sleep Mode Timer
|
1 to 30 minutes |
Sets the interval for Sleep Mode |
| A/V Mute Timer
|
On
Off
|
Automatically turns off the projector after 30 minutes
if A/V Mute is enabled |
| Standby Mode
|
Standby Mode
Port
|
Communication On:
indicates that the projector can be monitored and controlled over a
network when the projector is in standby mode; enable this setting
to allow the following operations to occur when the projector is in
standby mode:
- Monitor
and control the projector over a network
- Output
audio and video to an external device (A/V Output must be set to
Always On)
Port: selects the
Wired LAN or Wireless LAN port to use while the
Standby Mode setting is set to
Communication On |
| ECO Display
|
On
Off
|
Displays a leaf icon in the bottom left corner of the
projected screen to indicate the power-saving status when the laser
brightness changes |
