Loading Paper in Cassette 1 (Upper Cassette)

You can load photo paper and other media in these sizes in the upper paper cassette:
Note: Do not remove or insert the paper cassette while the product is operating.
  1. Slide in the output tray.


  2. Open the front cover until it clicks.


  3. Slide out the upper paper cassette. (The upper cassette has a 1 label on the right side.)


    Note: If the cassette is too far inside the product to reach, turn the product off and on again. The cassette moves to the correct position.
  4. Slide the edge guides outward.


  5. Insert paper with the glossy or printable side facedown until it touches the back of the cassette.


  6. Slide the side edge guides against the paper, but not too tightly.


    Note: Make sure the paper is under the tabs on the edge guides.

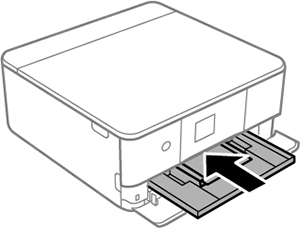

  7. Slide the cassette into the product until the end of the cassette is even with the front of the product. Keep the cassette flat as you slide it.


    Note: If you slide the cassette too far into the product, turn the product off and on again. The cassette moves to the correct position.
  8. Slide the output tray out.


  9. If prompted by the product's LCD screen, select the size and type of the paper you loaded, and select OK.
Always follow these paper loading guidelines:
