Saving Settings to a Computer

You can save the projector settings you want to transfer to a computer.

Your computer must be running one of the following operating systems:

Turn off the projector and unplug the power cord from the projector's power inlet.
Connect a USB cable to your projector's Service port.
Connect the other end to any available USB port on your computer.

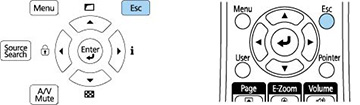

Press and hold the Esc button on the control panel or remote control as you connect the power cord to the projector's power inlet.
When the On/Standby and Status lights are blue, and the Laser and Temp lights are orange, release the Esc button.
The projector shows up as a removable disk on your computer.
Open the removable disk and copy the pjconfdata.bin file to your computer.
Once the file has copied, do one of the following:
- Windows: Open the My Computer, Computer, or Windows Explorer utility. Right-click the name of your projector (listed as a removable disk) and select Eject.
- Mac: Drag the removable disk icon for your projector from the desktop into the trash.
The projector enters standby mode.
