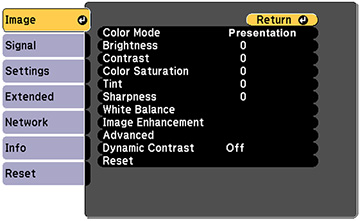

Settings on the Image menu let you adjust the quality of your image for the input source you are currently using. The available settings depend on the currently selected input source.
To change settings for an input source, make sure the source is connected and select that source.
| Setting | Options | Description |
|---|---|---|
| Color Mode | Various options available | Adjusts the vividness of image colors for various image types and environments |
| Brightness | Varying levels available | Lightens or darkens the overall image |
| Contrast | Varying levels available | Adjusts the difference between light and dark areas of the image |
| Color Saturation | Varying levels available | Adjusts the intensity of the image colors |
| Tint | Varying levels available | Adjusts the balance of green to magenta tones in the image |
| Sharpness | Varying levels available | Adjusts the sharpness of image details |
| White Balance | Color Temp.
G-M Correction Customized |
Adjusts the overall tint of the image
Color Temp.: sets the color tone based on color temperature G-M Correction: higher values tint the image blue and lower values tint the image red Customized: lets you adjust the offset and gain of each color R (red), G (green), and B (blue) individually |
| Image Enhancement | Noise Reduction
MPEG Noise Reduction |
Adjusts the image resolution
Noise Reduction: reduces flickering in analog images MPEG Noise Reduction: reduces the noise or artifacts seen in MPEG video |
| Advanced | Gamma | Adjusts the gamma levels of the image; select Customized to adjust the gamma while viewing the image or a graph |
| RGBCMY | Adjusts the hue, saturation, and brightness for each color | |
| Deinterlacing | Sets whether to convert interlaced-to-progressive
signals for certain video image types
Off: for fast-moving video images Video: for most video images Film/Auto: for movies, computer graphics, and animation |
|
| Dynamic Contrast | Off
Normal High Speed |
Adjusts the projected luminance based on the image
brightness when certain Color Modes are selected
Normal: for standard brightness adjustment High Speed: to adjust brightness as soon as the scene changes |
