Installing the Wireless LAN Module

To use the projector over a wireless network, install the optional Epson 802.11b/g/n wireless LAN module (PowerLite L400U/L500W/L510U/L610/L610W). Do not install any other type of wireless LAN module.
Caution:
Never remove the module while its indicator light is blue or flashing, or while you are projecting wirelessly. You may damage the module or lose data.
  1. Turn off the projector and unplug the power cord.

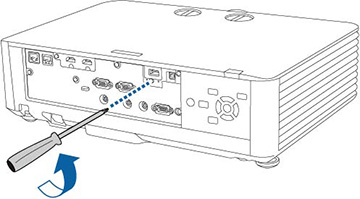

  2. Use a Phillips-head screwdriver to remove the screw securing the wireless LAN module cover, then remove the cover.


  3. Insert the wireless LAN module into the USB-A port.

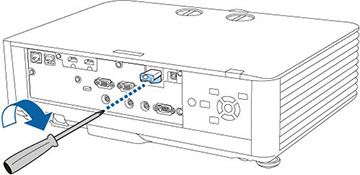

  4. Replace the wireless LAN module cover and secure it using the screw you removed.


  5. Plug in and turn on the projector.
