Adjusting the Image Height

If you are projecting from a table or other flat surface, and the image is too high or low, you can adjust the image height using the projector's adjustable feet.
  1. Turn on the projector and display an image.

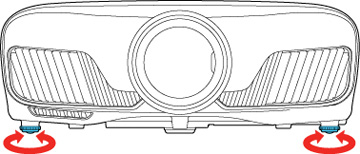

  2. If the image is tilted, rotate the front feet to adjust their height.


  3. To adjust the position of the projected image further, press the Lens button on the remote control or projector until Adjust Lens Shift appears on the screen and follow the on-screen instructions.

If the projected image is unevenly rectangular, you need to adjust the image shape.
