If you need
to store your product or transport it a long distance, prepare it
for transportation as described here.
Caution: During
transportation and storage, follow these guidelines:

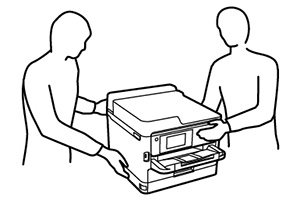

- Because the product is heavy, two or more people should lift and carry it using the hand positions shown here:
- Avoid tilting the product, placing it vertically, or turning it upside down; otherwise ink may leak.
- Leave the ink pack installed. Removing the pack can dry out the print head and may prevent the product from printing.
Note: Before
storing your product for a long period, replace low, expended, or
expired ink to help prevent the print head from drying out. Store
your product in a cool, dry place.
- Turn off the product.
- Wait for the
power light to turn off, then
unplug the power cable. - Disconnect any connected cables.
- Remove all the paper from the product and make sure there are no originals on the scanner glass.
- Lift up the scanner unit.
- Make sure the print head is in the home position on the right.

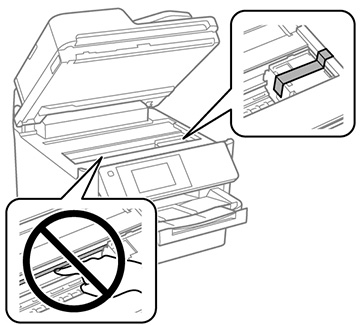

- Secure the print head to the case with tape as
shown.
Caution:Do not touch the white flat cable inside the product; otherwise, you may damage your product.
- Lower the scanner unit.

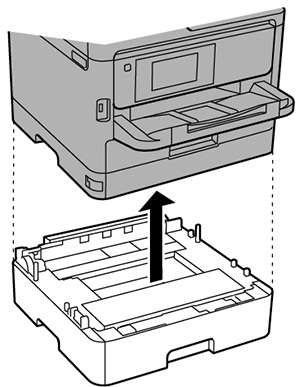

- Uninstall the optional paper cassette, if necessary.

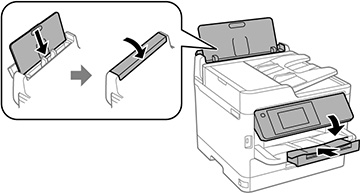

- Close the rear paper feed slot and output tray and lower the control panel.

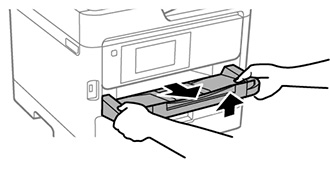

- Remove the output tray.
- Place the product in its original packing materials, if possible, or use equivalent materials with cushioning around the product.
