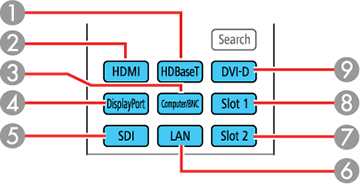

1 | HDBaseT port source |
2 | HDMI source |
3 | Computer or BNC port source |
4 | DisplayPort source (if optional DisplayPort interface board is installed) |
5 | SDI port source |
6 | Network source |
7 | Input ports on the optional interface board in Slot 2 |
8 | Input ports on the interface board in Slot 1 |
9 | DVI-D source |
1 | HDMI or DVI-D source |
2 | HDBaseT port or network source |
3 | SDI port source |
4 | Computer or BNC port source |
5 | Input ports on the interface board in Slot 1 |
6 | Input ports on the optional interface board in Slot 2 |
The Sync. light on the control panel turns on for the currently selected input source.
