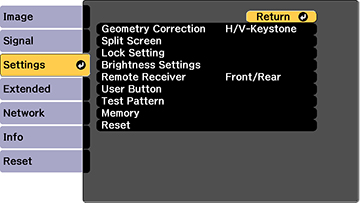

Projector Feature Settings - Settings Menu

Options on the Settings menu let you customize various projector features.

Setting Options Description
Geometry Correction H/V-Keystone

Quick Corner

Curved Surface

Corner Wall

Point Correction


Adjusts the projected image shape

H/V Keystone: lets you manually correct the angles of the horizontal and vertical sides

Quick Corner: select to adjust the position of the four corners

Curved Surface: select to adjust the image when projecting on a curved surface

Corner Wall: select to adjust the image when projecting on a surface with a right angle

Point Correction: select to display a grid and finely adjust the image position

Memory: select to save adjustment value of the geometric correction and load it when needed

Split Screen Divides the viewing area horizontally and displays two images side-by-side
Lock Setting Control Panel Lock

Lens Lock

Controls projector button locking to secure the projector
Control Panel Lock:
  • Full Lock: locks all buttons
  • Partial Lock: locks all buttons except the power button
  • Off: no buttons locked

Lens Lock: locks the focus, zoom, and lens shift settings

Brightness Settings Light Source Mode

Brightness Level

Constant Brightness

Estimated Remains

Selects the brightness mode of the projector
Light Source Mode: sets the brightness for the light source
  • Normal: maximum brightness
  • Quiet: 70% brightness with reduced fan noise
  • Extended: 70% brightness and extends the life expectancy of the light source
  • Custom: select a custom brightness level and enable use of next three settings

Brightness Level: select the Custom brightness level you want

Constant Brightness: maintains a constant brightness (cannot change the Light Source Mode and Brightness Level settings)

Estimated Remains: displays how long the projector can maintain constant brightness (if that setting is selected)

Remote Receiver Front/Rear




Limits reception of remote control signals by the selected receiver; Off turns off all receivers
User Button User1



Assigns a menu option to the User1, User2, and User3 buttons on the remote control for one-touch access
Test Pattern Displays a test pattern to assist in adjusting the image; select from a variety of patterns
Memory Memory

Lens Position

Geometry Correction

Save customized sets of settings to memory

Memory: loads, saves, erases, or resets specific menu settings

Lens Position: saves the position of the adjusted lens

Geometry Correction: saves the geometry correction adjustments.
