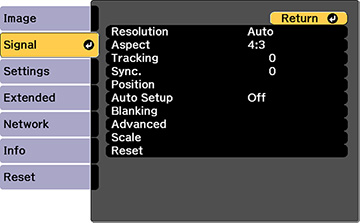

Input Signal Settings - Signal Menu

Normally the projector detects and optimizes the input signal settings automatically. If you need to customize the settings, you can use the Signal menu. The available settings depend on the currently selected input source.

Note: You can restore the default settings of the Position, Tracking, and Sync settings by pressing the Auto button on the remote control.

To change settings for an input source, make sure the source is connected and select that source.

Setting Options Description
Resolution Auto



Sets the input signal resolution from an analog RGB computer connection

Auto: detects the resolution automatically

Normal: for 4:3 or 5:4 screens

Wide: for widescreen

Manual: lets you specify a resolution

Aspect See the list of available aspect ratios Sets the aspect ratio (width-to-height ratio) for the selected input source
Tracking Varying levels available Adjusts signal to eliminate vertical stripes in images from an analog RGB computer connection
Sync. Varying levels available Adjusts signal to eliminate fuzziness or flickering in images from an analog RGB computer connection
Position Up, down, left, right Adjusts the image location on the screen
Auto Setup On


Automatically optimizes image quality from an analog RGB computer connection (when On)
Overscan Auto




Changes the projected image ratio to make the edges visible by a selectable percentage or automatically
Blanking Top




Hides an area of the projected image that you select using the arrow buttons
Color Space Auto



Sets the conversion system for the color space

Selecting the incorrect color space for the input source may adversely affect the image colors; the recommended setting in most cases is Auto.

Dynamic Range Dynamic Range

HDR10 Setting

HLG Setting

Dynamic Range: sets the range of dark and bright areas in images; choose from Auto (recommended), SDR, HDR10, or HLG

HDR10 Setting: adjusts the curve for the PQ (Perceptual Quantizer) signal

HLG Setting: adjusts the curve for the HDR HLG (Hybrid Log Gamma) signal

Advanced Video Range Sets the video range to match the setting of the device connected to the HDMI, DVI-D, HDBaseT, or SDI input ports
Input Signal Specifies the signal type from input sources connected to computer ports

Auto: detects signals automatically

RGB: corrects color for computer/RGB video inputs

Component: corrects color for component video inputs

BNC Sync Termination Sets the termination for the signal from the BNC port (set to Off unless you need analog termination, such as for switchers)
EDID Describes the projector's display capabilities to devices connected to the HDMI, HDBaseT, DVI-D, or DisplayPort input ports so you can unify multiple displays
DDC Buffer If you are projecting using an HDMI or DVI extension cable and the image is not displayed correctly, enabling this setting may improve image quality
Scale Various scale options When using multiple projectors to project one image, adjusts the scale of the image displayed by each projector
