The distance at which you place the projector from the screen determines the approximate size of the image. The image size increases the farther the projector is from the screen, but can vary depending on the zoom factor, aspect ratio, and other settings.
Use the tables here to determine approximately how far to place the projector from the screen based on the installed lens and the size of the projected image. (Conversion figures may have been rounded up or down.)
You can also use the projector Throw Distance Calculator at epson.com/support (U.S.) or epson.ca/support (Canada).

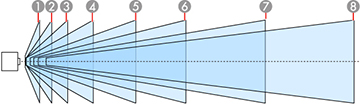

| Number | Lens | Screen size | Projection distance |
|---|---|---|---|
| 1 | ELPLX02
ELPLX02W |
100 to 1000 inches (254 to 2540 cm) | 29.1 to 302.8 inches (74 to 769 cm) |
| 2 | ELPLU04 | 60 to 1000 inches (152.4 to 2540 cm) | 31.5 to 670.0 inches (80 to 1702 cm) |
| 3 | ELPLW08 | 42.9 to 1039.0 inches (109 to 2639 cm) | |
| 4 | ELPLW06 | 58.7 to 1395.3 inches (149 to 3544 cm) | |
| 5 | ELPLM15 | 78.3 to 2190.2 inches (199 to 5563 cm) | |
| 6 | ELPLM10 | 120.5 to 3183.5 inches (306 to 8086 cm) | |
| 7 | ELPLM11 | 175.2 to 4648.4 inches (445 to 11807 cm) | |
| 8 | ELPLL08 | 261.4 to 6367.7 inches (664 to 16174 cm) |
Note: If the
screen is larger than 500 inches (1270 cm), fine text and images
may not display clearly.
