Saving Settings to a USB Flash Drive

You can save the projector settings you want to transfer to a USB flash drive.
Note: Use an empty flash drive. If the drive contains other files, the transfer may not complete correctly. The flash drive must use the FAT format and cannot have any security features.
  1. Turn off the projector using the power switch.
  2. Insert the flash drive into the USB-A port.

    Note: Connect the flash drive directly to the projector. Do not use a hub or your settings may not be saved correctly.

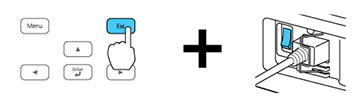

  3. Press and hold the Esc button on the control panel or remote control as you turn on the power switch.

  4. When the On/Standby and Status lights are blue, and the Laser and Temp lights are orange, release the Esc button.
    The lights flash to indicate that settings are transferring to the flash drive. When the lights stop flashing, the On/Standby light turns blue and the projector enters standby mode.
    Do not unplug the power cord, turn off the power switch, or remove the flash drive while the lights are flashing. This could damage the projector.
  5. Once the projector enters standby mode, remove the flash drive.
    Note: If the projector does not enter standby mode and the lights continue flashing, see the link below for a solution.
