Adjusting the Color Convergence (Panel Alignment)

You can use the Panel Alignment feature to manually adjust the color convergence (the alignment of the red and blue colors) in the projected image.
Note: You can adjust only the red or blue color convergence. Green is the standard color panel and cannot be adjusted.
  1. Turn on the projector.
  2. Press the Menu button.
  3. Select the Extended menu and press Enter.

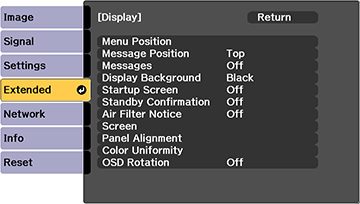

  4. Select the Display setting and press Enter.


  5. Select the Panel Alignment setting and press Enter.
  6. Select the Panel Alignment setting again and press Enter.
  7. Select On and press Enter.
  8. Press Esc to return to the previous screen.
  9. Select the Select Color setting and choose one of the following:
    • R to adjust the red color convergence.
    • B to adjust the blue color convergence.
  10. Press Esc to return to the previous screen.
  11. Select the Pattern Color setting and press Enter.
  12. Select the pattern you want to use and press Enter.
  13. Press Esc to return to the previous screen.

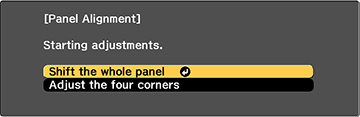

  14. Select Start Adjustments and press Enter. You see this screen:


  15. First, select Shift the whole panel to adjust the entire panel and press Enter.
  16. Use the arrow buttons on the remote control to adjust the whole panel and press Enter.
  17. Next, select Adjust the four corners to make finer adjustments and press Enter.
  18. Use the arrow buttons on the remote control to adjust the color alignment of the color you selected for the Select Color setting and press Enter.
  19. When you are finished adjusting each corner of the screen, press Enter.
  20. Do one of the following:
    • If your projector's panel alignment is now correct, select Exit and press Enter to return to the Panel Alignment menu.
    • If your projector needs additional panel alignment, select Select intersection and adjust and press Enter to continue making adjustments.
