Correcting Image Shape with H/V Keystone

You can use the projector's H/V Keystone setting to correct the shape of an image that is unevenly rectangular on the sides.


Note: You cannot combine H/V Keystone correction with other image shape correction methods.
  1. Turn on the projector and display an image.
  2. Press the Geometry button on the projector control panel or remote control.

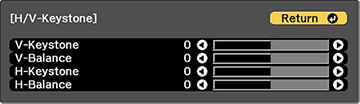

  3. Select the H/V-Keystone setting and press Enter. Then press Enter again. You see the H/V-Keystone adjustment screen:


    Note: You can also access the H/V Keystone setting by pressing the Menu button and selecting Geometry Correction on the Settings menu.

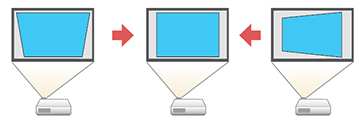

  4. Use the arrow buttons on the projector or the remote control to select between vertical and horizontal keystone or balance correction and to adjust the image shape as necessary.

    V-Keystone



    V-Balance



    H-Keystone



    H-Balance



  5. When you are finished, press the Menu button. After correction, your image may be slightly smaller.
