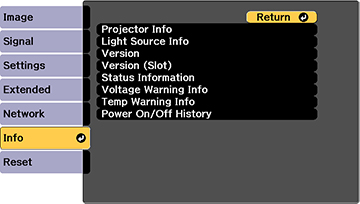

Projector Information Display - Info Menu

You can display information about the projector and input sources by viewing the Info menu. However, you cannot change any settings in the menu.



Setting Options Description
Projector Info Operation Hours Displays the number of hours the projector has been used since it was turned on
Source Displays the name of the port to which the current input source is connected
Input Signal Displays the input signal setting of the current input source
Resolution Displays the resolution of the current input source
Refresh Rate Displays the refresh rate of the current input source
Sync Info Displays information that may be needed by a service technician
Color Format Displays information about the color space and dynamic range
Status Displays information about projector problems that may be needed by a service technician
Serial Number Displays the projector's serial number
Lens Type Displays the model number of the installed lens
Event ID Displays the Event ID number corresponding to a specific projector problem; see the list of Event ID codes
HDBaseT Signal Level Displays the image signal information from the HDBaseT port
Light Source Info Light Source Hours Displays the number of operating hours for each of the projector's Light Source Mode settings
Estimated Remains If the Constant Brightness setting is enabled, displays the remaining number of hours the projector can maintain constant brightness
Version Main

Video2

Sub

Sub2

Image Control

Image Control2

HDBaseT

HDBaseT2

Status Monitor

AC Monitor

Displays the projector's firmware information
Version (Slot) Slot1

Slot2

Displays the version information of the interface board connected to the indicated slot
Status Information Displays basic status information
Voltage Warning Info Displays power voltage warning information
Temp Warning Info Displays various high temperature warning information
Power On/Off History Displays the projector's power on and power off history
