Selecting Wired Network Settings

Before you can project from computers on your network, you must select the network settings for the projector using its menu system.
Note: Make sure you already connected the projector to your wired network using the LAN port.
  1. Turn on the projector.
  2. Press the Menu button.

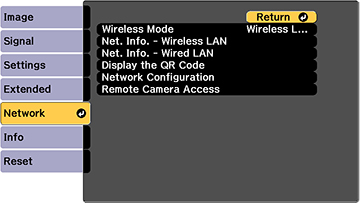

  3. Select the Network menu and press Enter.


  4. Select Network Configuration and press Enter.

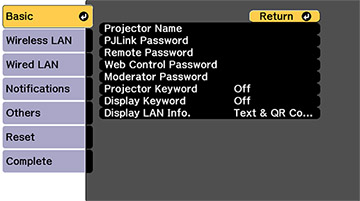

  5. Select the Basic menu and press Enter.


  6. Select the following basic options as necessary:
    • Projector Name lets you enter a name up to 16 alphanumeric characters long to identify the projector over the network.
    • PJLink Password lets you enter a password up to 32 alphanumeric characters long for using the PJLink protocol for projector control.
    • Remote Password lets you enter a password up to 8 alphanumeric characters long for accessing the Remote screen in Epson Web Control. (Default user name is EPSONREMOTE; default password is guest.)
    • Web Control Password lets you enter a password up to 8 alphanumeric characters long for accessing Epson Web Control. (Default user name is EPSONWEB; default password is admin.)
    • Moderator Password lets you enter a password up to 4 numbers long for accessing the projector as a moderator with the Epson iProjection (Windows/Mac) software or the Epson iProjection app.
    • Projector Keyword lets you turn on a security password to prevent access to the projector by anyone not in the room with it. The projector displays a random keyword that you must enter from a computer using the Epson iProjection (Windows/Mac) software or an iOS or Android device, or on a Chromebook, using the Epson iProjection app.
    • Display Keyword lets you display a keyword on the projected image when accessing the projector from a computer using the Epson iProjection (Windows/Mac) software or an iOS or Android device, or on a Chromebook, using the Epson iProjection app.
    • Display LAN Info lets you select how the projector displays network information. You can select an option to display a QR code that lets you quickly connect your iOS or Android devices using the Epson iProjection app.
    Note: Use the displayed keyboard to enter the name, passwords, and keyword. Press the arrow buttons on the remote control to highlight characters and press Enter to select them.

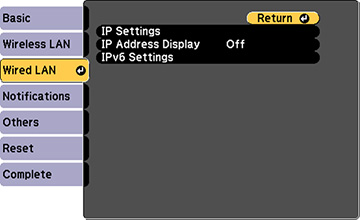

  7. Select the Wired LAN menu and press Enter.


  8. Select your IP Settings as necessary:
    • If your network assigns addresses automatically, turn on the DHCP setting.
    • If you must set addresses manually, turn off DHCP and enter the projector's IP Address, Subnet Mask, and Gateway Address as needed.
    Note: To highlight the numbers you want from the displayed keyboard, press the arrow buttons on the remote control. To select a highlighted number, press Enter.
  9. To prevent display of the IP address on the standby screen, turn off IP Address Display.
  10. To connect the projector to the network using IPv6, select On as the IPv6 Settings option. Then select the Auto Configuration and Use Temporary Address settings as necessary.
  11. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.
