Make sure
you have a new ink bottle handy and have read the ink safety
precautions before you begin.
You can continue to use the product even if the ink tank is not filled all the way. However, for the most accurate ink level monitoring, fill all the ink tank up to the upper line.
Note: The
product has a low ink alert system. The accuracy of this system
depends on the user refilling the ink tank correctly. The product
cannot directly measure the ink level in the tank; instead it
estimates the amount of ink remaining by internally monitoring ink
usage. The low ink alert system may generate inaccurate messages if
the ink tank is not refilled according to these instructions.
As a precaution, perform regular visual inspections of the ink tank to ensure the ink level does not fall below the lower line. Continued use of the product when the ink level is below the lower line on the tank could damage the product.
Caution:
If ink spills, wipe it off immediately
with a damp towel to avoid permanent stains. If ink gets on your
clothes or belongings, it may not come off.
- Turn on your product.
- Press the
home button, if
necessary.
- Select Maintenance and press the OK button. You see this screen:
- Select Reset Ink Level and press the OK button.

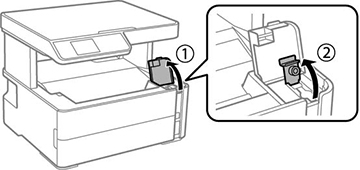

- Open the ink tank cover, then open the ink tank cap.

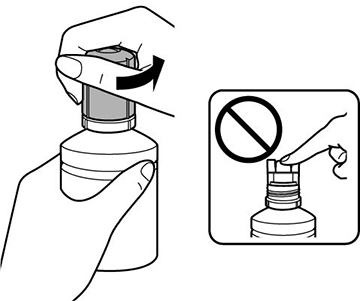

- Hold the ink bottle upright and slowly turn the bottle cap
to remove it.
Caution:Do not shake or squeeze the bottle. Do not touch the top of the bottle after its cap is removed.Warning: If ink gets on your skin, wash it thoroughly with soap and water. If ink gets into your eyes, flush them immediately with water. If ink gets into your mouth, spit it out immediately. Seek medical advice if problems persist. Keep the ink bottles out of the reach of children and do not drink the ink.

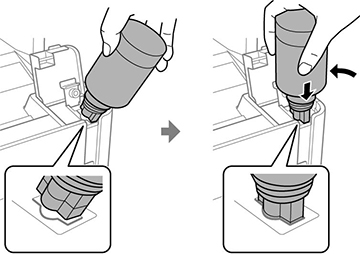

- Insert the ink bottle into the filling port, as shown below.

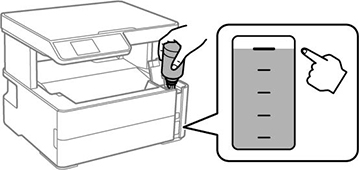

- Wait for the ink to fill
the tank. Do not squeeze the bottle. Ink flows into the tank and
stops automatically when the ink is filled to the upper
line.
Note: If ink does not flow from the bottle, lift and reinsert the bottle.
- When the ink tank is full,
remove the ink bottle and securely close the ink tank cap.
Note: If any ink remains in the bottle, replace the bottle cap and tighten it. Store the bottle upright for later use.
- Close the ink tank cover.
- Press the
start button and read the
on-screen information. Press the OK button when necessary.
- Press the start button again to reset
the ink level.
Caution:If you reset the ink level without refilling the ink tank to the upper line, you may print without enough ink in the tank and damage your printer. Before you print, make sure you visually check the ink level of the tank.
