print documents and photos on a variety of paper types and

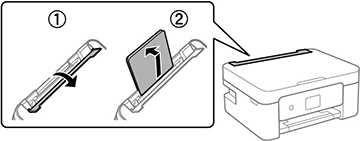

Flip the feeder guard forward and pull out the paper
Pull out the output tray and open the paper
Slide the edge guides out all the way.

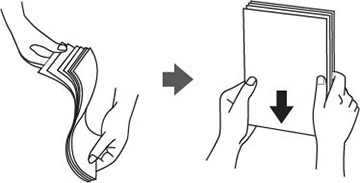

If you are inserting a stack of paper, fan the sheets
first and tap the stack on a flat surface to even the edges.
Note: Do not
fan or curl photo paper.
Do one of the following:
glossy or printable side up and short edge first, in the center of
the paper support.
Load up to 10
envelopes in the center of the paper support. Load them printable
side up and flap edge left.
Load a sheet
of loose-leaf or other paper with holes facing as shown.
To load a sheet of paper longer than legal
size, close the paper support and flatten the leading edge of the
paper as shown.
Slide the edge guides against the paper, but not too
these paper loading guidelines:
Load only the
recommended number of sheets.
Load paper short
edge first, no matter which way your document faces.
or pre-printed paper top edge first.
Do not load paper
above the arrow mark inside the edge guide.
If you have
trouble loading a stack of envelopes, press each envelope flat
before loading it or load one envelope at a time.
Do not load
envelopes that are curled, folded, or too thin, or that have
plastic windows or exposed adhesive flaps.
Check the paper
package for any additional loading instructions.
If you use paper
with binder holes, load only one sheet at a time in only these
sizes: Letter (8.5 × 11 inches
[216 × 279 mm]), A4
(8.3 × 11.7 inches [210 × 297 mm]),
or Legal (8.5 × 14 inches
[216 × 356 mm]).
