Connecting to an HDMI Video Source

If your video source has an HDMI port, you can connect it to the projector using an HDMI cable and send the image source's audio with the projected image.
Caution:
Do not turn on the video source before connecting it to the projector; otherwise, you may damage the projector.

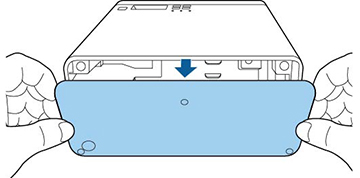

  1. Remove the rear cover from the projector.

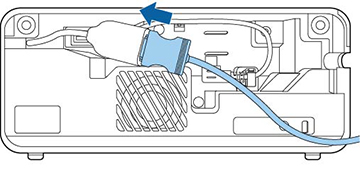

  2. Connect one end of an HDMI cable to your video source's HDMI port.
  3. Connect the other end of the HDMI cable to the HDMI extension cable.

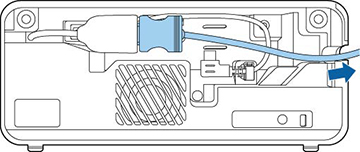

  4. Pass the HDMI cable through the cable path as shown.


  5. Replace the rear cover and push it into place.


Parent topic: Projector Connections
