Correcting Image Shape with Quick Corner

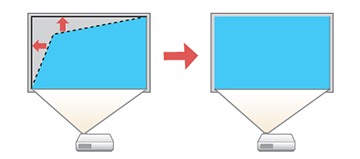

You can use the projector's Quick Corner setting to correct the shape and size of an image that is unevenly rectangular on all sides.


  1. Turn on the projector and display an image.
  2. Press the Menu button.
  3. Select the Settings menu and press Enter.


  4. Select the Keystone setting and press Enter.

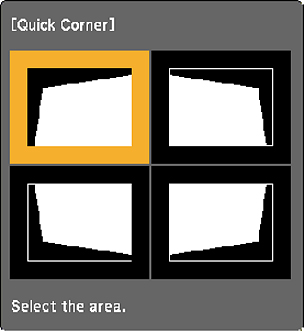

  5. Select the Quick Corner setting and press Enter. Then press Enter again. You see the Quick Corner adjustment screen:


    Note: To reset your adjustments, press and hold the Esc button for at least 2 seconds to display a reset screen. Then select Yes.
  6. Use the arrow buttons on the remote control to select the corner of the image you want to adjust. Then press Enter.
  7. Press the arrow buttons to adjust the image shape as necessary.
  8. When you are finished, press Esc.
Parent topic: Image Shape
