Adjusting the Image Position Using Screen Position

You can adjust the image position if there are margins between the edge of the image and the projected screen frame.
Note: You cannot adjust the screen position if the Screen Type setting is set to 16:10 for a WUXGA projector model or 4:3 for a XGA projector model.
  1. Turn on the projector and display an image.
  2. Press the Menu button.
  3. Select the Extended menu and press Enter.

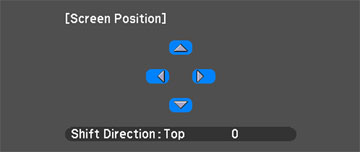

  4. Select Display > Screen > Screen Position.
  5. Use the arrow buttons on the remote control or projector to adjust the position of the image.


  6. When you are finished, press the Menu button.
Parent topic: Using Basic Projector Features
Related tasks
Setting the Screen Type
