You
can use the projector's Point Correction feature to fine-tune the
image shape using points on a grid. This is useful
for adjusting overlapping areas in multiple projected images that
do not line up correctly.
Note: You can
move the points on the grid between 0.5 to 32 pixels for WUXGA
models or 0.5 to 20 pixels for XGA models in any direction. If you
see a 4K Enhancement message, select Yes to disable the 4K Enhancement feature
(Pro L1060U/L1060UNL/L1070U/L1070UNL/L1075U/L1075UNL
only).
-
Turn on the projector and display an
image.
Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.Note: You can also display a pattern to aid in adjusting the projected image using the Test Pattern button on the remote control.
- Press the Menu button.
- Select the Settings menu and press Enter.
- Select the Geometry Correction setting and press Enter.
- Select the Point Correction setting and press
Enter.

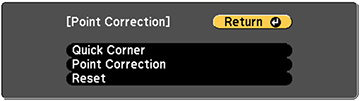

Note: If you see a confirmation message, press Enter.You see this screen:
- Select the Point Correction setting and press Enter. You see this screen:
- Select the Point Correction setting and press Enter.
-
Select the number of grid lines to display and
press Enter.
Note: If you need to change the color of the grid lines, select the Pattern Color setting and select a suitable color.

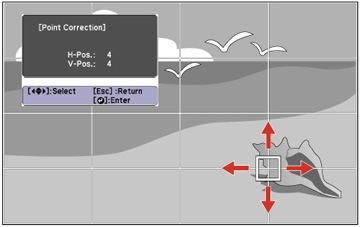

- Press the arrow buttons on the projector or remote control to move to the point on the grid that you want to adjust. Then press Enter. The box changes from a single line to a double-lined square.
-
Press the arrow buttons to correct the image
shape in all necessary directions.
Note: You can press Enter to show or hide the image and grid to check the results.
- Press Esc to return to the previous screen and select another point to correct, if necessary.
-
When you are finished, press the Menu button.
Note: If necessary, you can fine-tune your image adjustments using the Corner Wall setting.
