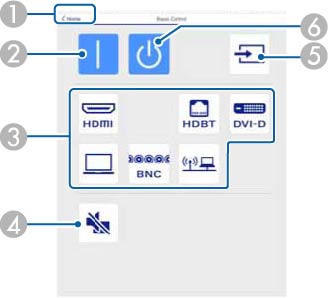

Basic Control
Note: If the
Remote Password is set to On, you
need to enter your user name and password. (The default username is
EPSONREMOTE and the default
password is guest).
| 1 | Returns to the Home screen |
| 2 | Turns on the projector |
| 3 | Input source selection controls |
| 4 | A/V Mute button control |
| 5 | Searches for sources |
| 6 | Turns off the projector |

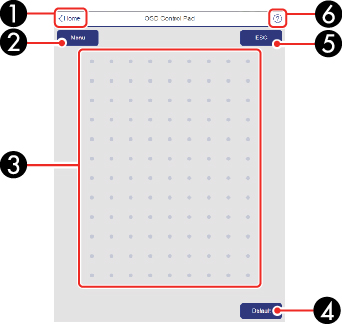

OSD Control Pad
| 1 | Returns to the Home screen |
| 2 | Displays the projector's setting menus |
| 3 | Use your finger or mouse to navigate the menus |
| 4 | Returns settings to their default values |
| 5 | Returns to the previous menu |
| 6 | Displays help topics |
Note: You
cannot change some settings using Epson Web Control.

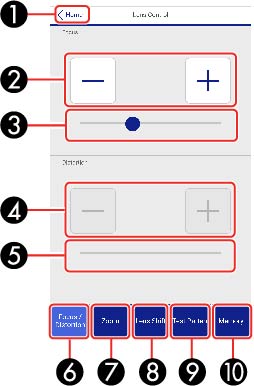

Lens Control
Focus/Distortion screen
| 1 | Returns to the Home screen |
| 2 | Focus adjustment buttons |
| 3 | Focus adjustment slider |
| 4 | Distortion adjustment buttons (not available for ELPLU02) |
| 5 | Distortion adjustment slider (not available for ELPLU02) |
| 6 | Displays the Focus/Distortion screen |
| 7 | Displays the Zoom screen |
| 8 | Displays the Lens Shift screen |
| 9 | Displays the Test Pattern screen |
| 10 | Displays the Memory screen |

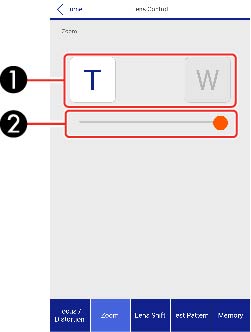

Zoom screen
Note:
Zoom is not available for the ELPLX01, ELPLX01W,
and ELPLR04 lenses.
| 1 | Zoom adjustment buttons |
| 2 | Zoom adjustment slider |

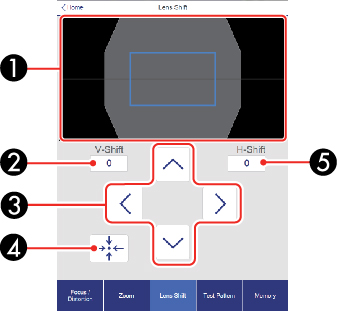

Lens Shift screen
| 1 | The blue square displays the current image position and the red square displays the new image position |
| 2 | Displays the vertical image position; select to change the value |
| 3 | Moves the image position up, down, left, or right |
| 4 | Moves the lens to the home position |
| 5 | Displays the horizontal image position; select to change the value |

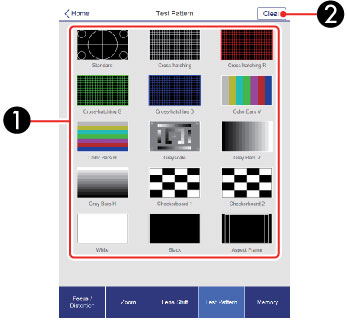

Test Pattern screen
| 1 | Displays available test patterns; select to project a test pattern |
| 2 | Turns off test pattern display |
