Adjusting the Color Convergence (Panel Alignment)

You can use the Panel Alignment feature to manually adjust the color convergence (the alignment of the red and blue colors) in the projected image.

Note: You can adjust only the red or blue color convergence. Green is the standard color panel and cannot be adjusted.

Note: Allow your projector to warm up for at least 10 to 15 minutes and make sure the image is in focus before you use the Panel Alignment feature. For best results, project an image sized at least 60 inches (152 cm) diagonally in a dark room and on a projection surface that is not colored or textured.

Turn on the projector.
Press the Menu button.
Select the Extended menu and press Enter.
Select the Display setting and press Enter.
Select the Panel Alignment setting and press Enter.
Select the Panel Alignment setting and press Enter.
Select On and press Enter.
Select the Select Color setting and choose one of the following:
- R to adjust the red color convergence.
- B to adjust the blue color convergence.
Select the Pattern Color setting and press Enter.
Select the pattern you want to use and press Enter.
Select Start Adjustments and press Enter. You see this screen:
Select one of the following:
- Select Shift the whole panel to adjust the whole panel at the same time. (This is not recommended, as usually only certain areas of the panel need to be adjusted.) Continue with step 13.
- Select Adjust the four corners to adjust the corners of the panel one at a time. Skip to step 16.
Press Enter. You see a screen like this:
Use the arrow buttons on the remote control to adjust the color alignment of the color you selected for the Select Color setting.
When you are finished adjusting the screen, press Enter. You see this screen:

Note: The Shift the whole panel option affects the grid lines in the entire screen. To fine-tune your adjustments, continue with the next steps.
Select Adjust the four corners and press Enter. (Otherwise, select Exit and press Enter.)
Use the arrow buttons on the remote control to adjust the color alignment in the corner of the screen highlighted by the orange box.
Press the Enter button to move to the next corner of the screen.

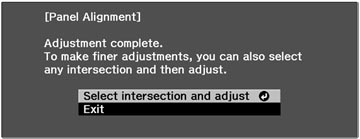

When you are finished adjusting each corner of the screen, press Enter. You see this screen:
Do one of the following:
- If your projector's panel alignment is now correct, select Exit and press Enter to return to the Panel Alignment menu.
- If your projector needs additional panel alignment, select Select intersection and adjust and press Enter. Use the arrow keys on the remote control to highlight the corner of any misaligned box on the screen, press Enter, make any necessary adjustments and press Enter again. Repeat this step as necessary for the other intersections.
