| Height (excluding feet) | 6.2 inches (157 mm) |
| Width | 16.1 inches (410 mm) |
| Depth (with lens) | 13 inches (330 mm) |
| Weight | Home Cinema 3200:
14.6 lb (6.6 kg) Home Cinema 3800: 15.2 lb (6.9 kg) |

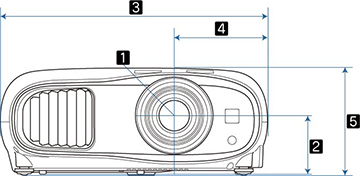

For mounting
| 1 | Center of lens |
| 2 | Distance from center of lens to suspension bracket fixing point: 3.5 inches (90 mm) |
| 3 | 16.1 inches (410 mm) |
| 4 | 5.6 inches (143.5 mm) |
| 5 | 6.5 inches (164 mm) |
| 1 | 11.8 inches (300 mm) |
| 2 | 1.8 inches (44.5 mm) |
| 3 | 5.9 inches (150 mm) |
| 4 | 13 inches (330 mm) |
| 5 | 3.4 inches (87.6 mm) |
| 6 | 6.3 inches (160 mm) |
| 7 | M4×9 screws (4) |
